How to Measure Metal Stud and Track Quantities from Drawings
A reliable metal stud and track take-off is one of the foundations of a profitable drylining tender. The calculation is not simply the wall length divided by a spacing. The estimate must reflect the specified system, wall height, openings, corners, junctions, deflection details, support framing and the way the work will be installed.
Why metalwork take-offs are often understated
Under-measuring can create material shortages, extra deliveries and unplanned labour. Over-measuring without understanding the system can make a tender uncompetitive. The objective is a traceable take-off that another person can check against the drawings.
Start with the wall and partition schedule
Identify every partition type and match it to the wall-type schedule. Record the stud size, track size, gauge, board build-up, insulation, fire rating, acoustic requirement and special fixing detail. Do not assume that two partitions with the same thickness use the same metalwork. A service riser or shaft wall may require a completely different system from a standard internal partition.
Create a take-off code for each wall type so quantities remain separated throughout the estimate.

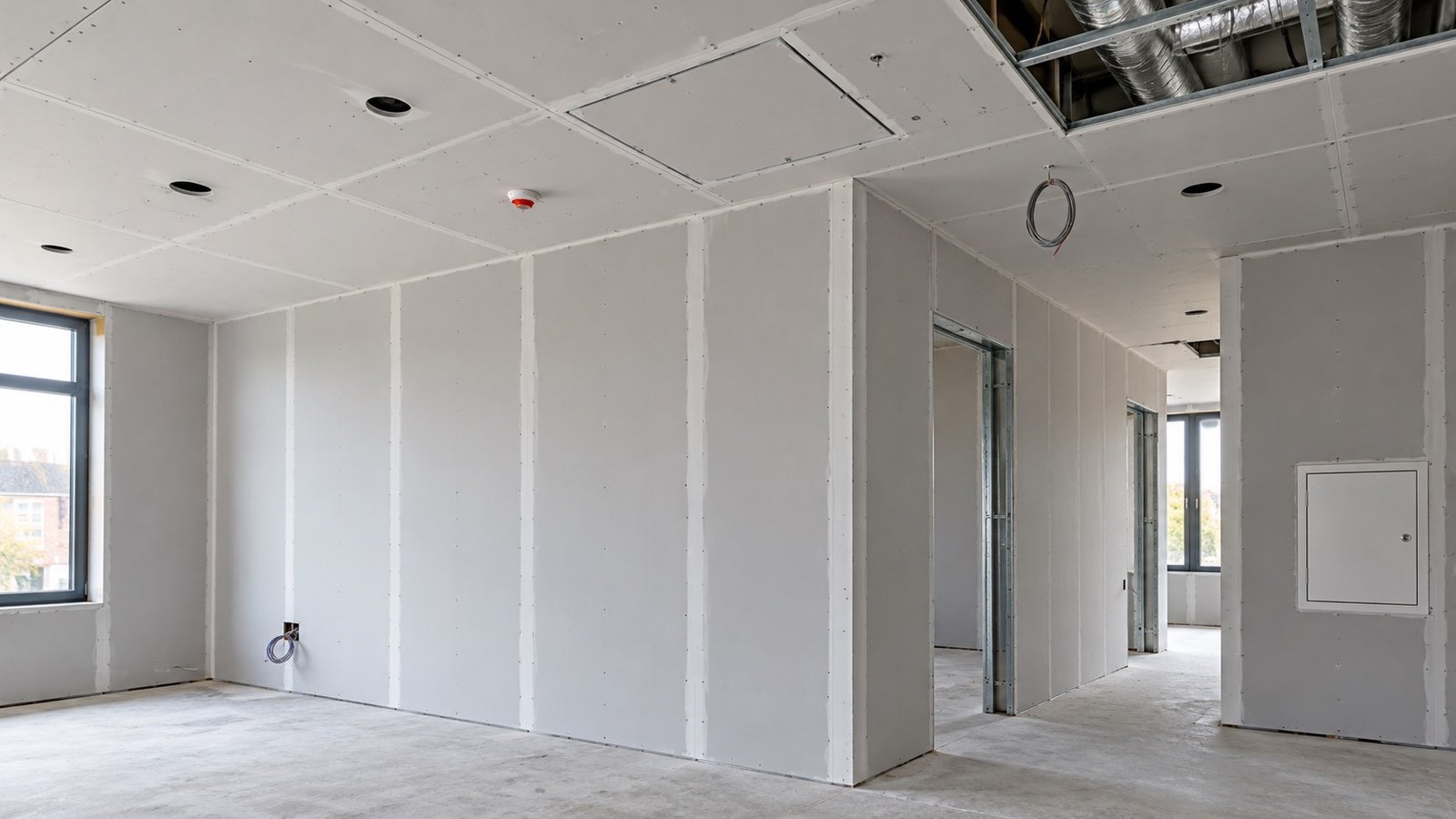

Measure wall lengths by system
Measure each wall run from the drawings and record the floor or room reference. If a wall changes height, thickness or construction along its length, split it into separate take-off lines. This matters around staircases, sloping ceilings, bulkheads and roof spaces.
For each wall run, record the wall type, length, height, number of layers, stud centres, track arrangement, openings, junctions and drawing reference. If dimensions conflict between drawings, record the discrepancy and raise a query.

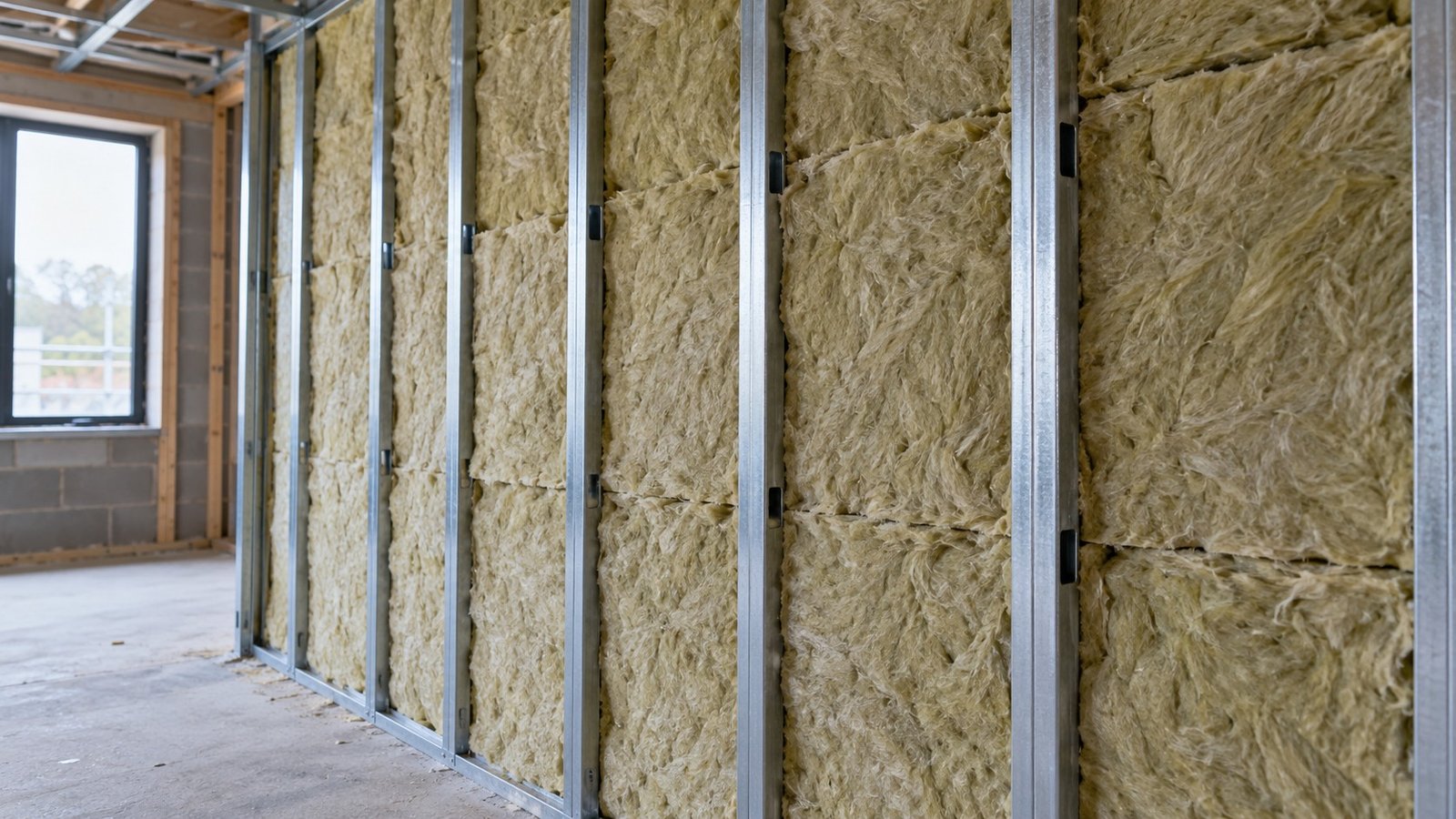

Calculating vertical studs
The number of studs depends on the wall length, stud centres and framing arrangement at ends, corners, junctions and openings. Check the specified system for maximum stud centres, end studs, corner framing, partition intersections, door openings, service openings and board-joint support.
Where a door or opening interrupts the wall, the framing may require extra studs and horizontal members. Large openings, fire doors, access panels and heavy joinery may require further reinforcement. Do not rely on a generic allowance when the drawings or system literature require a specific detail.
Measuring head and base track
Track is generally measured along the base and head of the partition, but each end and junction needs checking. Some systems use deflection heads, slotted tracks or separate movement details. These should be measured and described separately rather than hidden in a generic track allowance.
Check whether the track requires acoustic sealant, isolation tape, mechanical fixings at a specified spacing, fire-rated seals, deflection allowance or doubled sections. Track at openings, changes in level and abutments may need separate treatment.
Allow for corners and junctions
Corners and junctions are common sources of under-measurement. A T-junction may require additional framing to support board edges. An external corner may need extra studs or a proprietary detail. A partition meeting a concrete column, masonry wall or independent lining may need a different fixing arrangement.
Review partitions meeting at angles, cross-junctions, wall ends, abutments to existing walls, columns, transfer beams, risers and changes between partition systems. A separate line for junction and framing allowances makes the estimate easier to review.
Openings and support framing
Check every significant door, window and access-panel opening against the relevant schedule. The framing may include jamb studs, head tracks, sill tracks, noggings, boxed sections or additional support for frames and ironmongery.
Consider support for fire doors, sliding-door systems, access panels, wall-mounted basins, kitchen units, grab rails, radiators, screens and shelving. If the support detail is not defined, record an assumption or raise a tender query rather than omitting it.
Deflection heads and movement details
Partitions beneath concrete slabs, steel beams or timber structures may require a deflection head. Check the required movement allowance, track detail, board fixing restrictions, fire and acoustic sealing and connections to adjacent linings.
Deflection heads affect material quantities and labour productivity. They should be identified at tender stage, not discovered after the partition has already been framed.
Wastage and stock lengths
Theoretical quantities do not automatically translate into purchased quantities. Stud and track are supplied in stock lengths, and cutting patterns affect waste. Short wall runs, multiple openings and irregular layouts can increase offcuts.
Allow for practical stock lengths, cutting waste, damaged pieces, delivery constraints, storage, handling and reasonable tender risk. A blanket percentage can help at early stage, but a detailed tender should reflect the actual geometry.
Cross-check before pricing
Compare the metalwork take-off with board quantities, insulation areas and the room schedule. Cross-check floor plans, sections, reflected ceiling plans, door schedules, wall-type schedules, structural openings, services coordination and tender clarifications.
A second review by another estimator or supervisor can identify errors that are difficult to see when the same person has measured and priced the package.
Present the tender clearly
Show wall types, quantities, assumptions, exclusions, wastage approach, access assumptions and unresolved design points. If a quantity depends on information that has not been issued, state that clearly. If the price excludes strengthening, fire stopping, access equipment or later coordination changes, identify those exclusions before submission.
